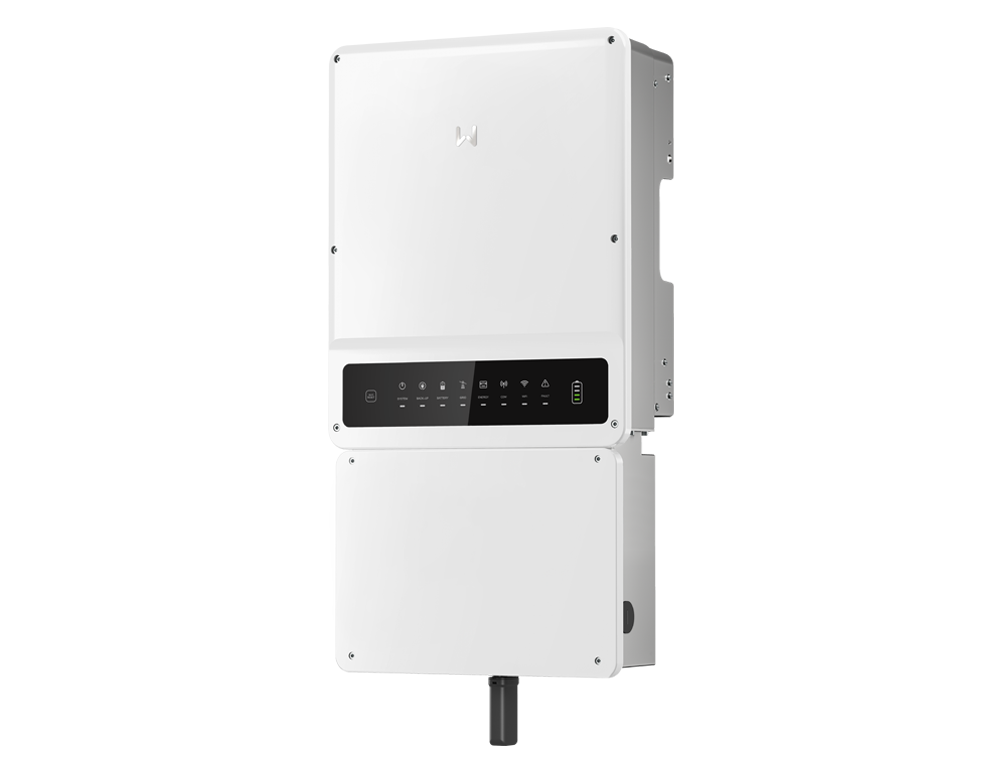

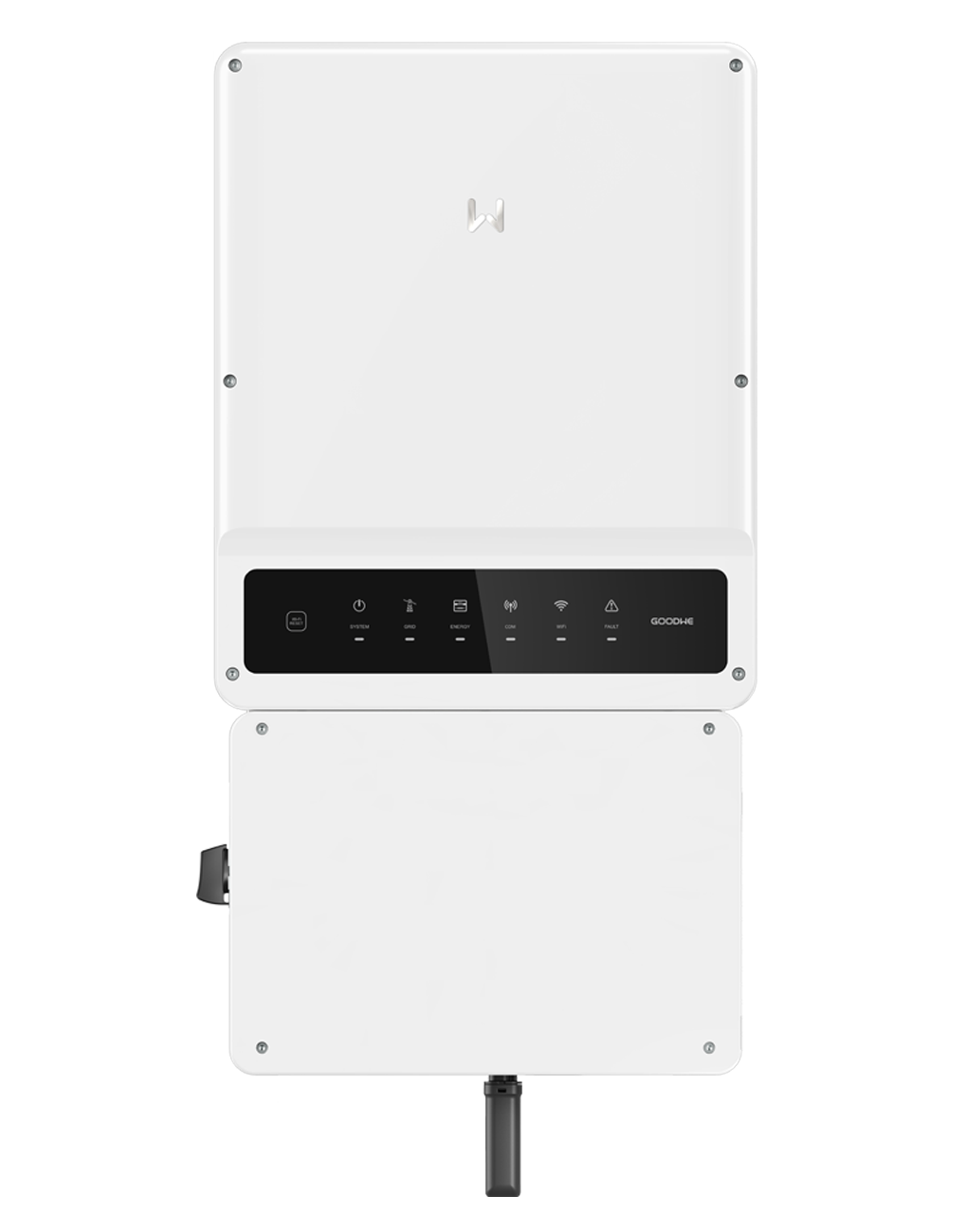

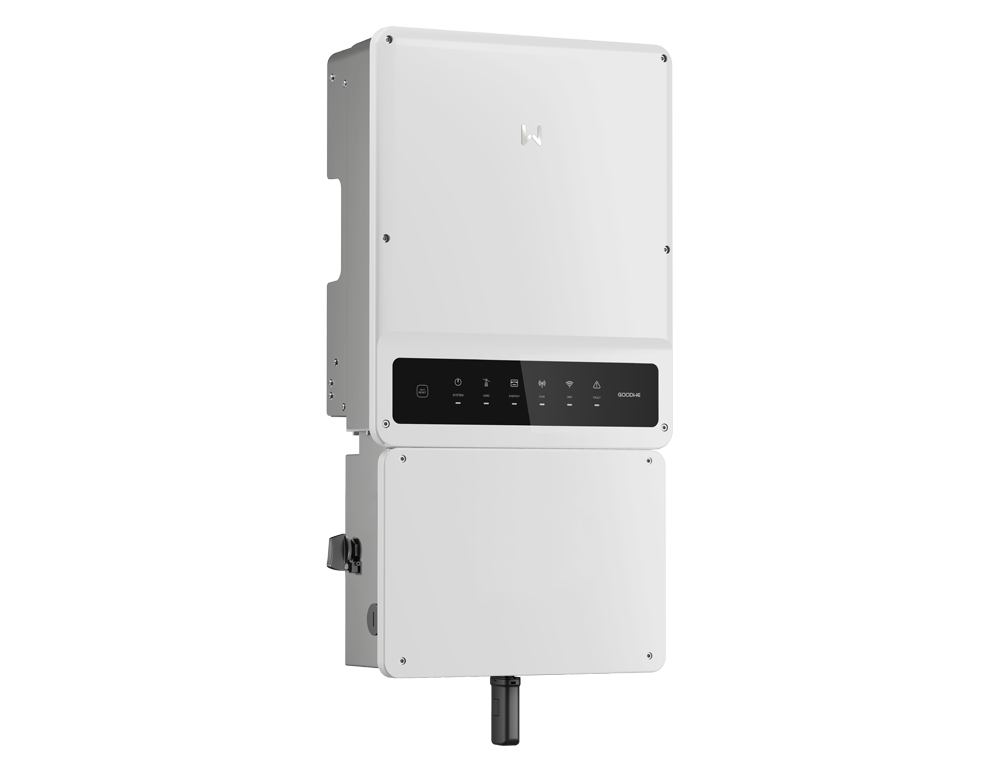

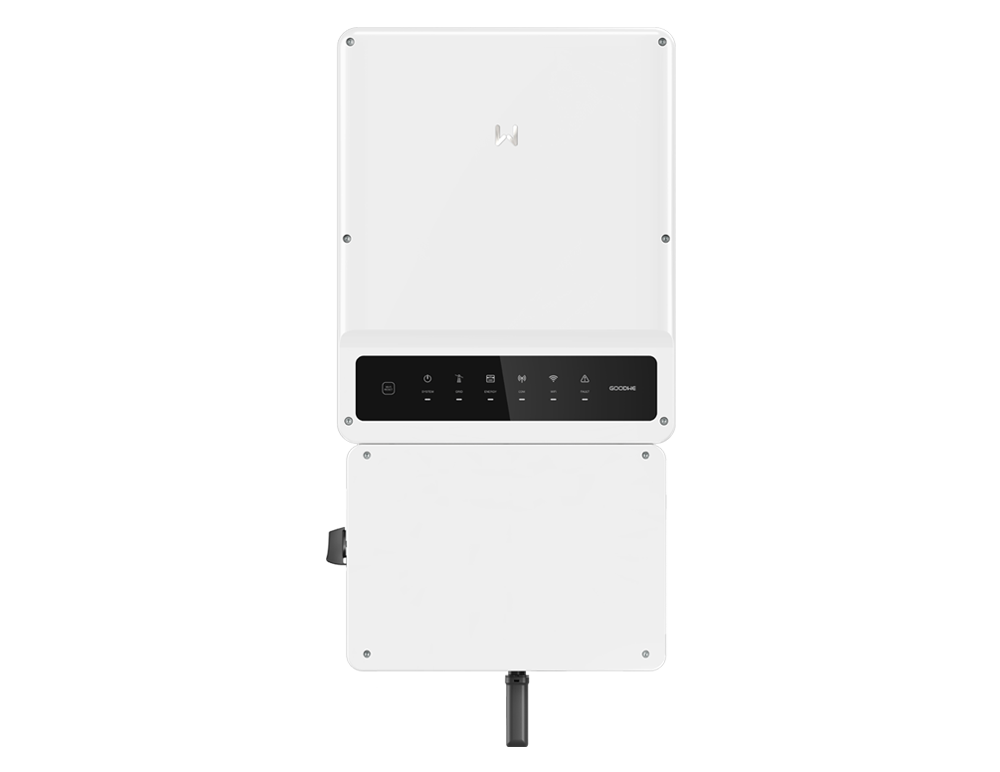

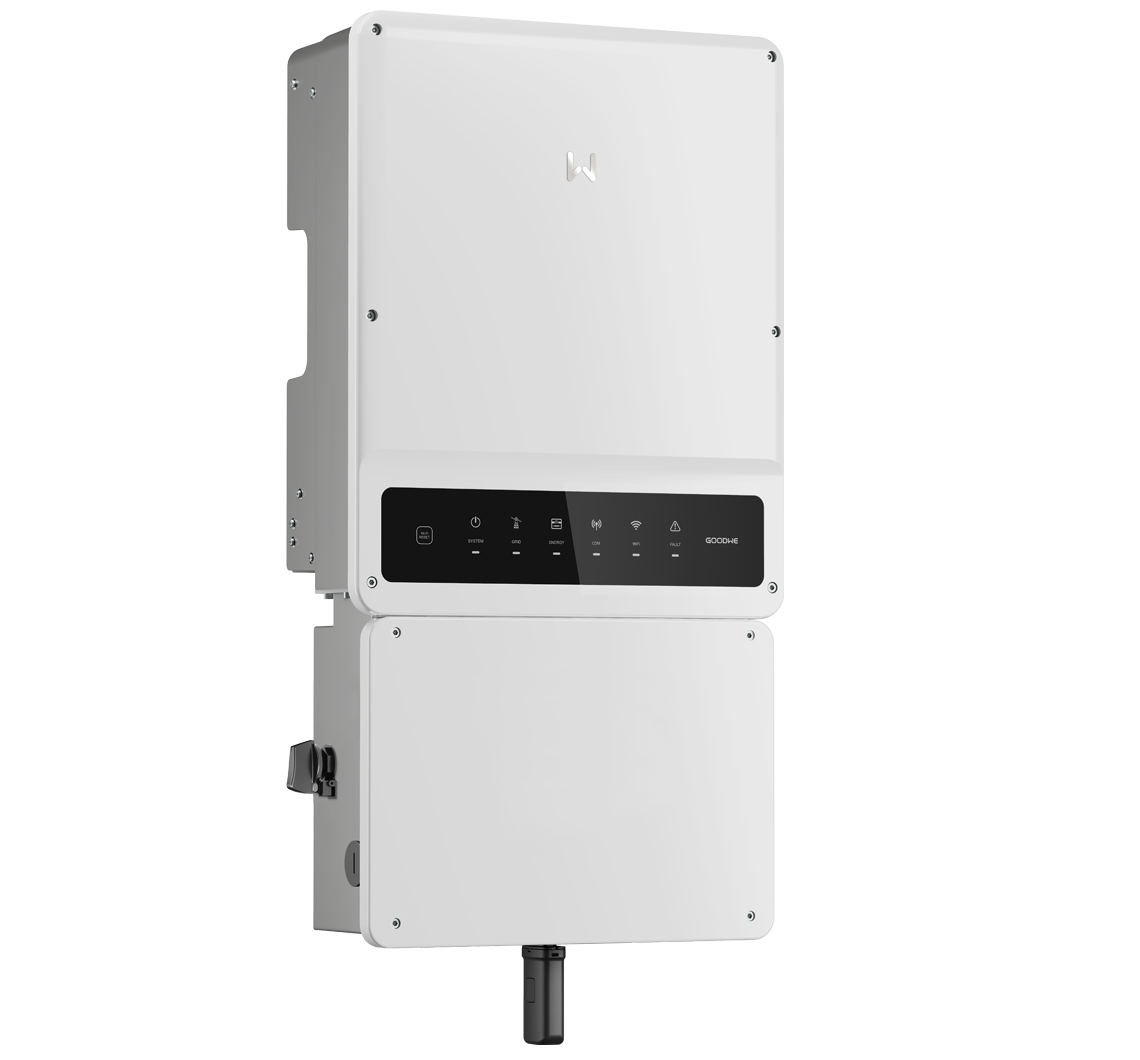

The A-MS is an inverter of the highest quality and we take great pride in it. This product was conceived to be a solid element of your residential array for the long term. Put your faith and confidence in its quality, its extended warranty of 10 years and GoodWe will be on your side for any issue along the way.
Compatible with bifacial panels
95V start-up voltage
150% DC input oversizing
Integrated AFCI & rapid shutdown
4 MPPTs
North America
10-year warranty
undefined
undefined
undefined
Integrated AFCI & Rapid Shutdown
The A-MS has been designed to meet the safety regulations of the American market, including Arc Fault Circuit Interrupter and Rapid Shutdown. GoodWe does not only deliver efficiency, reliability, but security as well.
High Power Generation
This inverter goes with the trends of the North American residential market and is compatible with bifacial modules. It also has the capacity to take as much as 12.5 A per string. These features ensure that the A-MS can absorb more solar power and make it one of the most productive inverters on the American residential market. With a start-up voltage of only 95 V, the A-MS is capable of generating solar power earlier than competitors, remaining productive for a larger portion of your typical day. With 150% DC input oversizing capability, the A-MS allows end-users to significantly expand the solar array and drive increased power output even under low solar radiation.
Compatible with bifacial modules
95V start-up voltage
150% DC input oversizing
DESPRIPCION GENERAL
Model
GW5000A-MS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
12.5/12.5
Number of Strings per MPPT
1/1
Nominal Output Power (kW)
5
Nominal Output Voltage (V)
211 to 264 @240 / 183 to 229 @208
Model
GW6000A-MS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
12.5/12.5
Number of Strings per MPPT
1/1
Nominal Output Power (kW)
6
Nominal Output Voltage (V)
211 to 264 @240 / 183 to 229 @208
Model
GW7000A-MS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
12.5/12.5/12.5/12.5
Number of Strings per MPPT
1/1/1/1
Nominal Output Power (kW)
7
Nominal Output Voltage (V)
211 to 264 @240 / 183 to 229 @208
Model
GW7600A-MS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
12.5/12.5/12.5/12.5
Number of Strings per MPPT
1/1/1/1
Nominal Output Power (kW)
7.6
Nominal Output Voltage (V)
211 to 264 @240 / 183 to 229 @208
Model
GW8600A-MS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
12.5/12.5/12.5/12.5
Number of Strings per MPPT
1/1/1/1
Nominal Output Power (kW)
8.6
Nominal Output Voltage (V)
211 to 264 @240 / 183 to 229 @208
Model
GW9600A-MS
Max. Input Voltage (V)
600
Max. Input Current per MPPT (A)
12.5/12.5/12.5/12.5
Number of Strings per MPPT
1/1/1/1
Nominal Output Power (kW)
9.6
Nominal Output Voltage (V)
211 to 264 @240 / 183 to 229 @208
